SKU: 1-10185 Categories: Jacks, Toe Jacks with External Hydraulics

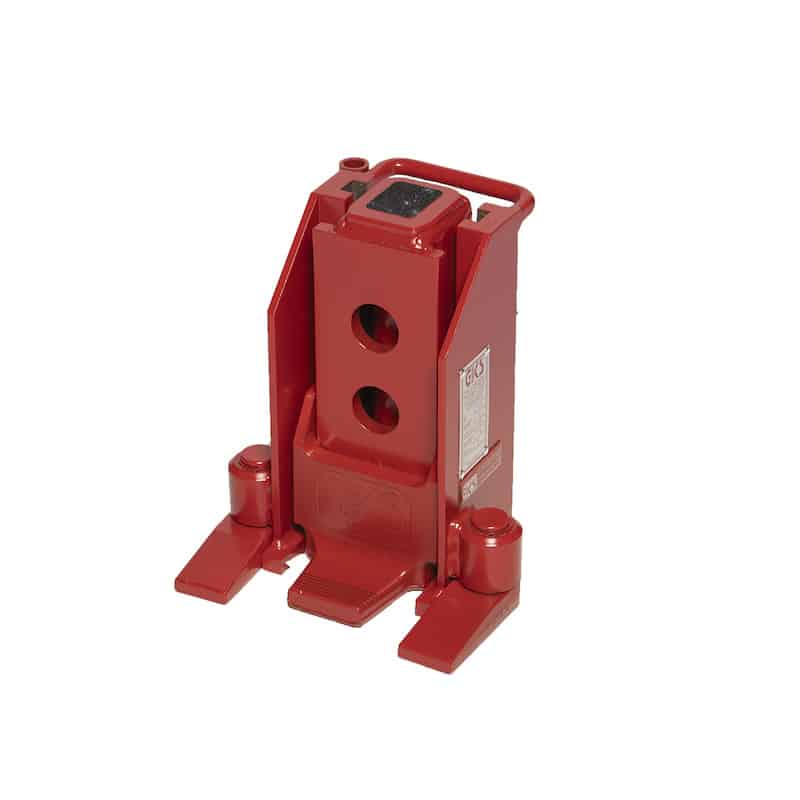

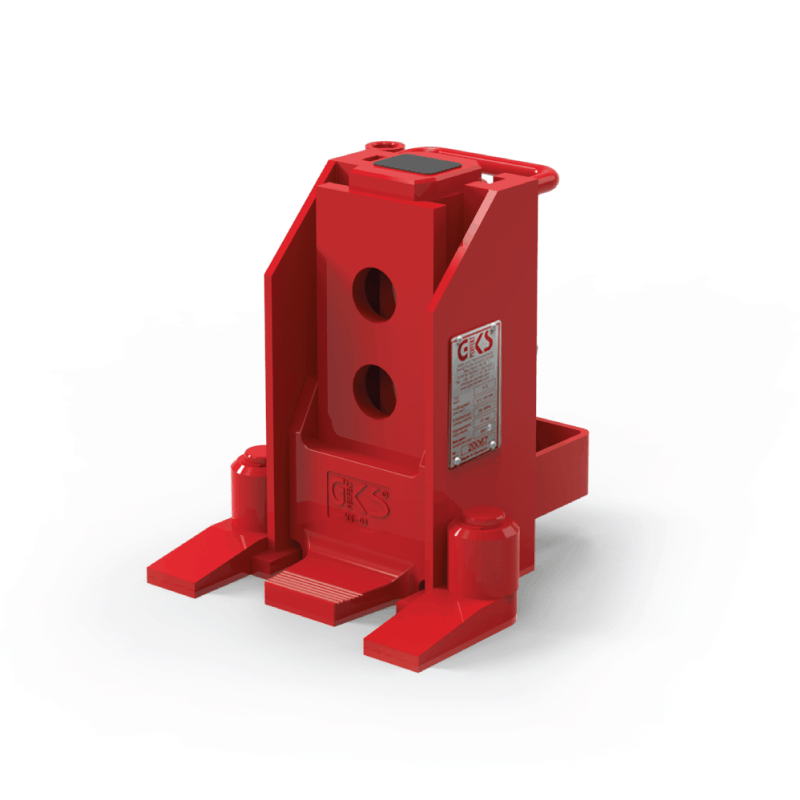

V5-EX Toe Jack with External Hydraulics

For lifting heavy loads safely and securely

$1,197.00

In stock

Product ManualProduct SchematicProduct Spec SheetProduct CertificationSpare PartsProduct Catalog

Additional information

Weight 38 lbs
Dimensions 10.5 × 8.4 × 9.9 in
Load Capacity

11,000 lbs. (5 t) 50kN
Working Pressure

7,542 psi (520 bar)
Lifting Positions

3
Loading Position 1

.6” (15mm)
Loading Position 2

2.9” (74mm)
Loading Position 3

5.3” (135mm)
Lifting From Head

10” (252mm)
Lifting height

5.5" (140 mm)
Loading Height

Top Plate 10" (252 mm)
Top Plate LxW

2.6 x 2.3" (68 x 60 mm)
Weight

38 lbs. / 17 kg

Key Features

  • Built without internal hydraulics to minimize weight and size—must use with a hydraulic pump
  • Same capacity on the toe and the head
  • Forged, steel safety toe; which is more durable than cast steel
  • 5-year warranty

Competitive Edge

  •  The original adjustable toe jack
  • Simplified Design—less parts means less problems
  • Next day lead time
  • Non slip friction pad on the head of the jack
  • Jack refurbishment services available

The pumps you’ll need for your EX jacks

Related products

GKS-Perfekt Toe Jack V5-Ex

Via external pump PV (item # 10198) operated, extremely sturdy hydraulic toe jack for professional use up to 11,000 lbs. / 5 t load capacity.

For inside/outside use in factories, workshops, for rigging or maintenance purposes, for heavy hauling and more, where the remote operation for safety reasons is recommended.

Full load capacity on toe and top plate.

One-piece, height-adjustable safety toe with 5 years warranty.

Min. lifting height is 0.6" / 15 mm only!

Release valve for precise and sensitive lowering.

Safety valve for overload protection.

Double capacity by operating a second jack through our external pump PV.

Ask About This Product

Discover how GKS provides the heavy-duty solutions and comprehensive services you need to get your lifting and transport job done right.
