In stock
| Weight | 50 lbs |
|---|---|
| Max. working pressure | 7,542 psi / 520 bar |
| Flow rate stage 1 per lift | 0.67 gal/min @ 102 psi, 2.5 ltr/min @ 7 bar |
| Flow rate stage 2 per lift | 0.08 gal/min @ 752 psi, 0.3 ltr/min @ 520 bar |
| Tank Capacity | 1.27 gal / 4.81 |
| Overall Dimensions (LxWxH) | 17.1 x 15.7 x 19.4" (434 x 400 x 493 mm) |
| Tare weight incl. oil fill (without hoses) | 97 lbs./ 44kg |
| Hydraulic hoses (10" /3m) - with quick-release fastener | 4 hoses |
| For GKS toe jack models | 4x V5, V5-EX, V10, V10-EX, V15, V15-EX,V15-EX-270, V20, V20-EX, G5, G10, 2x V30-EX |
| Electric connection | 12 V/60 Hz |

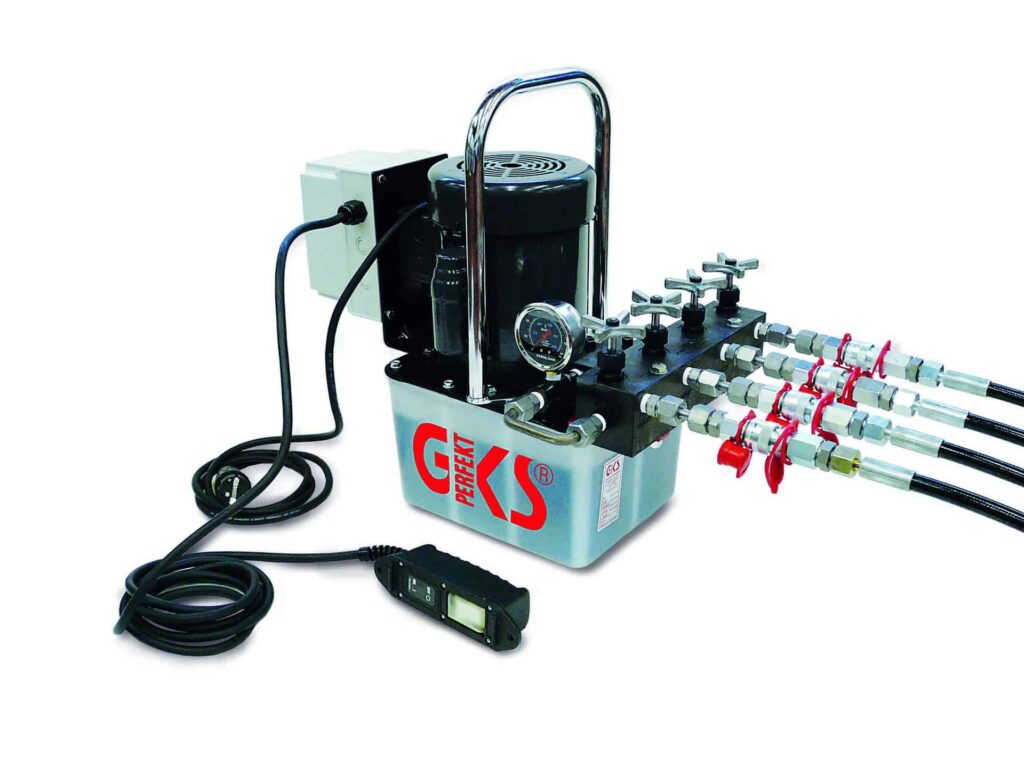

The GKS PE4 four valve electric pump facilitates simultaneous lift with our V series or EX series hydraulic toe jacks. Utilizing an electric pump can reduce manpower needed for the lift, allow staff to stay farther away from the lifting load, and can provide a faster lift. The four valves allow for individual hoses to be shut off if the load weight is not balanced and one side is lifting faster than the other. This feature allows the operator to ensure the load stays level at all times.
